Two Phase Isolation Type Transformer , Standard Current Transformer 10mA -120A

Brand Name : KRE

Model Number : KE6322

Certification : ISO9000

Place of Origin : China

MOQ : 1 piece

Payment Terms : Western Union, L/C, T/T, D/P, D/A, MoneyGram

Supply Ability : 50 pieces per month

Delivery Time : 30 days

Packaging Details : Plywood case

Product name : Isolation current transformer

Primary current range : 10mA -120A

Secondary current range : 10mA -120A

Ratio : 1:1

Shell material : aluminium alloy

Phase : two

Contact Now

Two Phase Isolation Current Transformer for I-P close link meter ratio 1:1

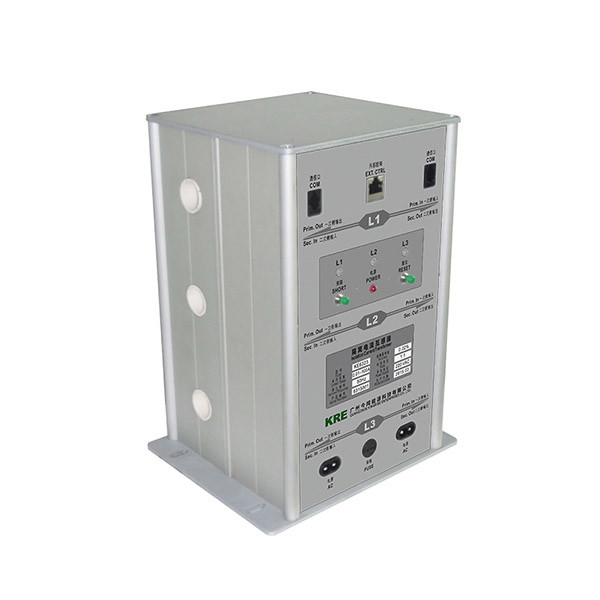

KE6322 Isolation current transformer

KE6322 is a two phase 1:1 current transformer, which mainly used to test I-P close link meter. It has high accuracy and compact size.

Features:

High accuracy through active electronic error compensation.
Direct perforated installation
Wide current dynamic range: 10mA --120A (Primary side)
Output power: Max 60VA per phase
When secondary measure open circuit or overload occurs, ICT will protect automatically and send out alarm signal
Can realize local bypass through button
With RS485 port, can realize remote control and status monitoring

Technical parameters:

Accuracy : 0.02

Phase number: 2

Ratio error(typical): ±0.01%

Angle error(typical): ±0.05min

Output power per phase (max.) : 60VA

Auxiliary power supply: Ac185V- 265V / 45Hz - 65Hz

Ratio: 1:1

Nominal frequency: 50 Hz (45 … 55 Hz) or 60 Hz (54 … 66 Hz)

Primary current range: 10mA-120A

Secondary current range: 10mA-120A
